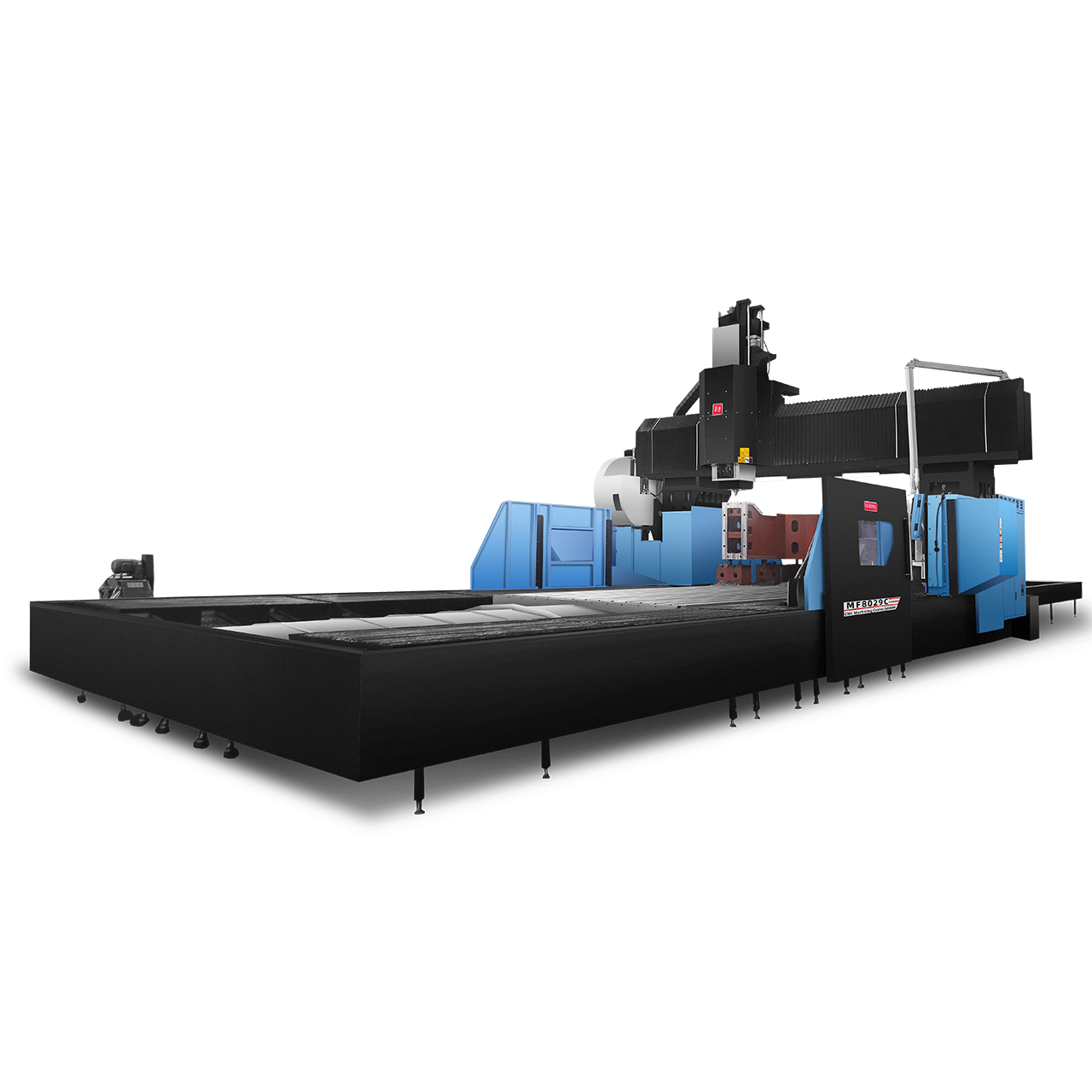

MF-8029-Gantry Machining Center-Two Wires and One Hard-LED Special

MF8029C (Fanuc 1 package system + BT50 gearbox + Z-axis square ram)

Technical parametersTechnical Parameters

Model	model	Unit)
itineraryTravel
X-axis travel	X-axis travel	mm	8000
Y-axis travel	Y-axis travel	mm	3300
Z-axis travel	Z-axis travel	mm	1250
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	250-1500
The middle distance between the inside of the two columns	Gantry width （inside)	mm	2900
The distance from the work surface to the beam	Distance from table top to beam	mm	1700
workbenchWorktable
Table size	Worktable size	mm	6000X2600
T-slot	Maximum load	mm	13-28-200
Maximum load-bearing	Maximum load	kg	30000
spindleSpindle
Spindle speed	Spindle Speed	.rpm	6000
Spindle power	Spindle motor power	KW	22Kw
Spindle taper hole	Spindle taper hole		BT50-φ190
Spindle spring chuck	Spindle collet chuck		C42
Loose knife way	Unlock tool way		Pneumatic booster cylinder knife
Feed rateFederate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	6000/8000/8000
Cutting feed rate	Cutting feed rate	mm/min	5000
precisionAccuracy
Positioning accuracy	Pointing accuracy	mm	±0.005/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.003/300
Machine informationMachine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	1700056005600
Machine weight	Machine weight	kg	52000
Power demand (power/current)	Power requirement	KVA	40

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

MF8029C (Fanuc 1 package system + BT50 gearbox + Z-axis square ram)Model optional configuration (Additional charges apply）

sequencenumber	Accessory name	Product model	quantity	Remarks
1	̈ Tool magazine	BT50-24T cutter arm type	1cover	Tokusho / Okada / Furuta
2	̈ Tool magazine	BT50-30T cutter arm type	1cover
3	̈ Manual 90 angle head is optional(Non-chainring positioning)	BT50-90	1cover
4	̈ Manual 90 angle head is optional(Chainring positioning)	BT50-90	1cover
5	̈ Automatic 90 angle head is optional(Indexing 5°)	BT50-90	1cover
6	̈ Automatic 90 angle head is optional(Indexing 2.5°)	BT50-90	1cover
7	̈ Flat nose pliers should be optional	6inch	1piece
8	̈ An optional refractometer is required	Handheld 0-60	1piece
9	̈ Optional lock knife wrench	C42 exclusive	1handful
10	̈ Optional locking tool holder	BT50 with clamping lock tool holder	1piece
11	̈Precision cutting head is optional	BT50-C42-110(With card slot)	1piece
12	̈ Precision spring clip is optional	C42 6/8/10/12/16/20	1 each
13	̈ To choose a U disk		1piece
14	̈ To choose a combination pressure plate	M16 Composite Platen	1cover
