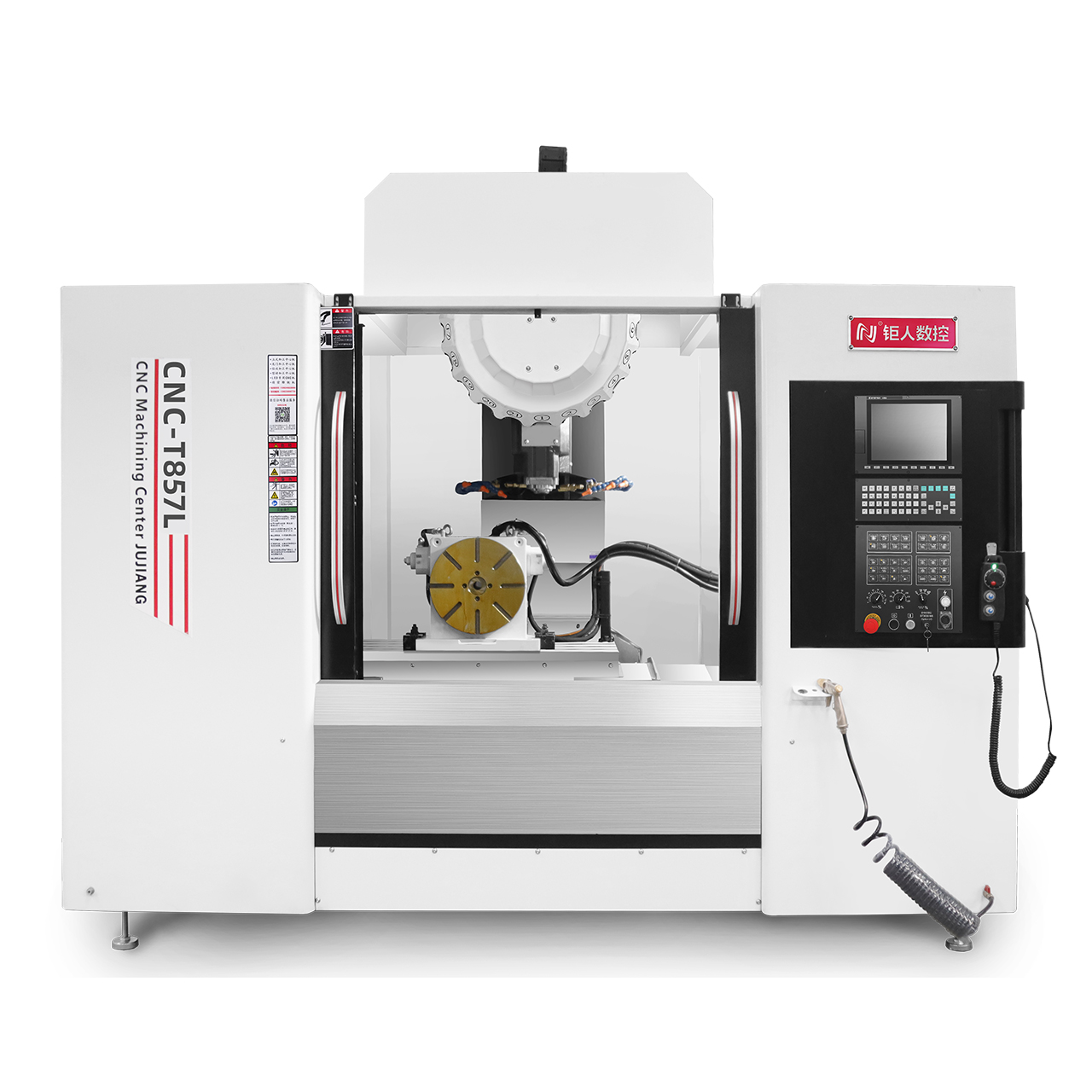

T857L-Drilling & Tapping Center

X/Y/Z travel：800/500/600

Table size:1000*500 mm

Maximum working load500 kg

spindle:Direct-coupled BT30

Spindle speed:20000.rpm

Loose knife way:Mechanical

Tool magazine capacity:21T

Control system:Mitsubishi M80B control system

X/Y/Z express displacement:48000mm/min

Cutting feed rate:120000mm/min

Positioning accuracy:±0.003/300

Form factor:2600×2700×2700

Machine weight:4500kg

Electricity demand:15KVA

Send Inquiry Live Chat

Product Details
T857L-Flat Machine
T857L-side machine
Optional configuration

T857L (Mitsubishi M80B system + direct BT30 spindle + clamp arm type 21T servo tool magazine)Technical parameters

Technical Parameters

Model	model	Unit
Itinerary Travel
X-axis travel	X-axis travel	mm	800
Y-axis travel	Y-axis travel	mm	500
Z-axis travel	Z-axis travel	mm	600
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	200-800
The distance from the spindle centerline to the column guideway	Distance from spindle center to column rail	mm	672
Workbench Worktable
Table size	Worktable size (L×W)	mm	1000*500
Maximum load-bearing	Maximum load	kg	500
T-slot	T-slot	mm	5-18-100
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	20000
Spindle power	Spindle motor power	KW	5.5
Spindle taper hole	Spindle taper hole		ER25
Loose knife way	Unlock tool way		Mechanical
Clamp armTool magazine
Tool magazine capacity	Tool magazine Capacity	T	21
Maximum tool length	Max tool length	mm	150
Maximum tool diameter/empty knife	Maximum tool diameter	mm	60/80
Maximum tool weight	Maximum tool weight	Kg	3
Tool change time	Tool change time	Sec	0.3~1.2
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	48000
Cutting feed rate	Cutting feed rate	mm/min	12000
Accuracy
Positioning accuracy	Pointing accuracy	mm	±0.003/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.002/300
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	260027002700
Machine weight	Machine weight	kg	4500
Power demand (power/current)	Power requirement	KVA	15

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

T857L(Planar machine)(Mitsubishi M80B system + direct BT30 spindle + clamp arm type 21T servo tool magazine)Technical parameters

Technical Parameters

Model	model	Unit
Itinerary Travel
X-axis travel	X-axis travel	mm	800
Y-axis travel	Y-axis travel	mm	550
Z-axis travel	Z-axis travel	mm	600
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	200-800
The distance from the spindle centerline to the column guideway	Distance from spindle center to column rail	mm	643
Workbench Worktable
Table size	Worktable size (L×W)	mm	1000*500
Maximum load-bearing	Maximum load	kg	500
T-slot	T-slot	mm	5-18-100
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	20000
Spindle power	Spindle motor power	KW	5.5
Spindle taper hole	Spindle taper hole		ER25
Loose knife way	Unlock tool way		Mechanical
Clamp armTool magazine
Tool magazine capacity	Tool magazine Capacity	T	21
Maximum tool length	Max tool length	mm	150
Maximum tool diameter/empty knife	Maximum tool diameter	mm	60/80
Maximum tool weight	Maximum tool weight	Kg	3
Tool change time	Tool change time	Sec	0.3~1.2
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	48000
Cutting feed rate	Cutting feed rate	mm/min	12000
Accuracy
Positioning accuracy	Pointing accuracy	mm	±0.003/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.002/300
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	280027002700
Machine weight	Machine weight	kg	4800
Power demand (power/current)	Power requirement	KVA	15

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

T857L(Side machine)(Mitsubishi M80B system + direct BT30 spindle + clamp arm type 21T servo tool magazine)Technical parameters

Technical Parameters

Model	model	Unit
Itinerary Travel
X-axis travel	X-axis travel	mm	800
Y-axis travel	Y-axis travel	mm	550
Z-axis travel	Z-axis travel	mm	600
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	200-800
The distance from the spindle centerline to the column guideway	Distance from spindle center to column rail	mm	643
Maximum workpiece rotation diameter	Max workpiece rotation diameter	mm	Φ820
Workpieces can be machined(Length X Width X Height) (Clamp included)	Machinable workpiece size (lengthWidthHeight)(Including fixtures) 90	mm	650X512X140
Workbench Worktable
Table size	Worktable size (L×W)	mm	1000*460
Maximum load-bearing	Maximum load	kg	500
T-slot	T-slot	mm	4-18-100
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	20000
Spindle power	Spindle motor power	KW	5.5
Spindle taper hole	Spindle taper hole		ER25
Loose knife way	Unlock tool way		Mechanical
Clamp armTool magazine
Tool magazine capacity	Tool magazine Capacity	T	21
Maximum tool length	Max tool length	mm	150
Maximum tool diameter/empty knife	Maximum tool diameter	mm	60/80
Maximum tool weight	Maximum tool weight	Kg	3
Tool change time	Tool change time	Sec	0.3~1.2
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	48000
Cutting feed rate	Cutting feed rate	mm/min	12000
Accuracy
Positioning accuracy	Pointing accuracy	mm	±0.003/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.002/300
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	280027002700
Machine weight	Machine weight	kg	4800
Power demand (power/current)	Power requirement	KVA	15

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

T857L (Mitsubishi M80B system + direct BT30 spindle + clamp arm type 21T servo tool magazine)

Model optional configuration (Additional charges apply）

sequencenumber	Accessory name	Product model	quantity	Remarks
1	̈Optional five-shaft (turboworm)	Body FAR210 motor + drive	1cover
2	̈Optional five-shaft (turboworm)	Body FHR255 motor + drive	1cover
3	̈Optional five-shaft (turboworm)	Body FHR320 motor + drive	1cover
4	̈ Optional five-shaft (harmonic gear)	Body JS210 motor + drive	1cover
5	̈ Optional five-shaft (harmonic gear)	Body JS255 motor + drive	1cover
6	̈ Optional four-axis (body)	Ontology AR210，Drive + motor	1cover
7	̈ Optional four-axis (body + disc tailstock)	Ontology AR210，Drive + motor，Disc tailstock RTA210，Block L，Bridge plate	1cover
8	̈ Optional four-axle (body + top tailstock)	Ontology AR210，Drive + motor，TJ210 top tailstock，Chuck flange	1cover
9	̈ Optional four-axis (body)	Ontology HR255，Drive + motor	1cover
10	̈ Optional four-axis (body + disc tailstock)	Ontology HR255，Drive + motor，Disc tailstock RTH255，Block L，Bridge plate	1cover
11	̈ Optional four-axle (body + top tailstock)	Ontology HR255，Drive + motor，TJ210 top tailstock，Chuck flange	1cover
12	̈ Flat nose pliers should be optional	6inch	1piece
13	̈ An optional refractometer is required	Handheld 0-60	1piece
14	̈ Optional lock knife wrench	ER25 locker wrench	1handful
15	̈ Optional locking tool holder	BT30 with card slot lock tool holder	1piece
16	̈Precision cutting head is optional	BT30-ER25-70mm (with card slot)	1piece
17	̈ Precision spring clip is optional	ER25 4/6/8/10/12	1 each
18	̈ To choose a U disk		1piece
19	̈ To choose a combination pressure plate	M12 combination platen	1cover
20	̈Chain chip conveyor should be optional		1cover
