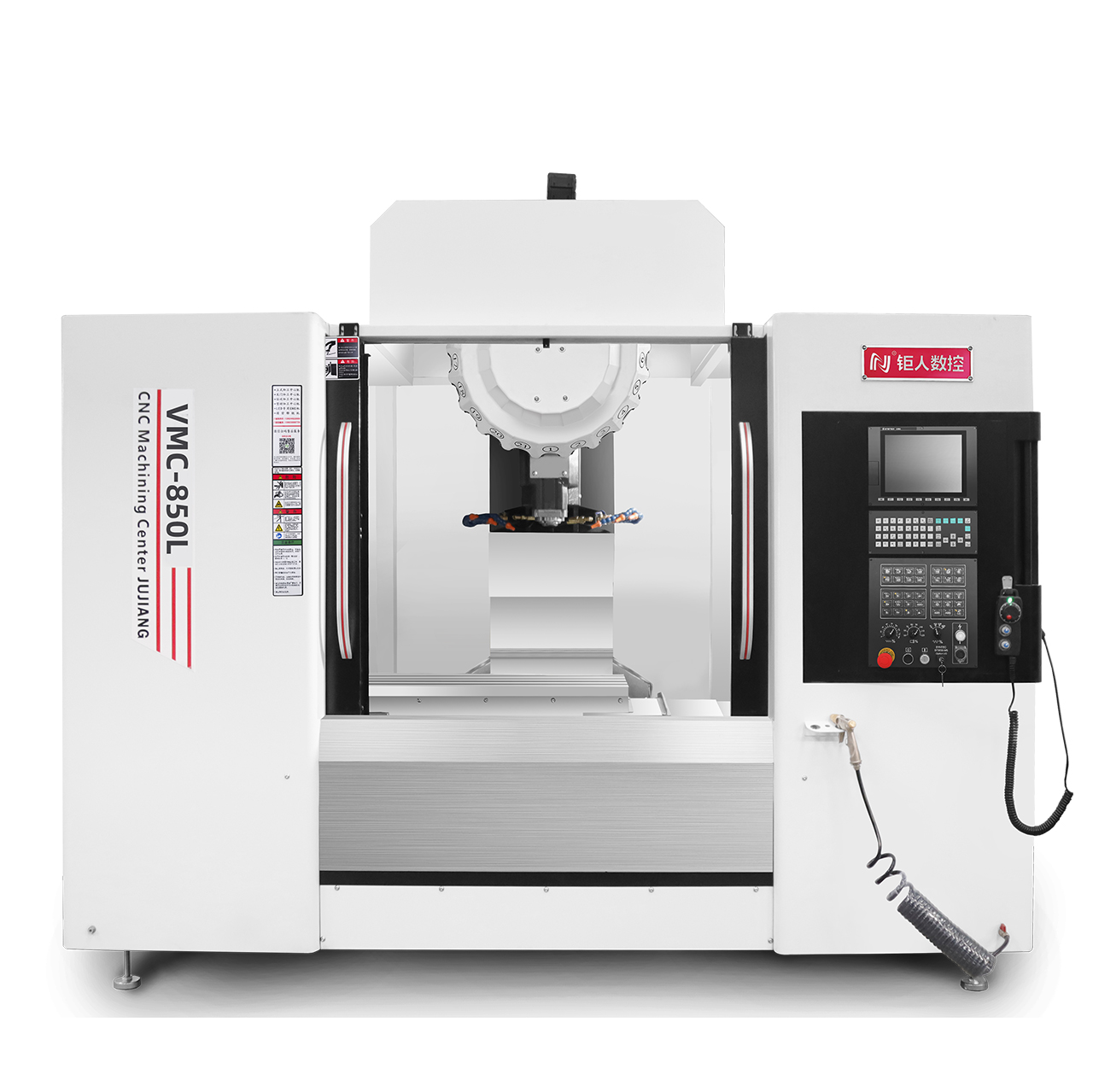

VMC-850L Vertical Machining Center (Two Lines and One Hard)

VMC-850L (Mitsubishi M80B + Belt BT40 Spindle)Technical parameters

Technical Parameters

Model	model	Unit)
Itinerary Travel
X-axis travel	X-axis travel	mm	800
Y-axis travel	Y-axis travel	mm	500
Z-axis travel	Z-axis travel	mm	500
Distance from spindle end face to work table	Distance from guide plane to spindle center	mm	110-610
The distance from the spindle centerline to the column guideway		mm	560
Workbench Worktable
Table size	Worktable size (L×W)	mm	1000×500
Maximum load-bearing	Maximum load	kg	450
T-slot	T-slot	mm	5-18-90
Spindle Spindle
Spindle speed	Spindle Speed	.rpm	8000
Spindle power	Spindle motor power	KW	11
Spindle taper hole	Spindle taper hole		BT40-φ150
Spindle spring chuck	Spindle collet chuck		C32
Loose knife way	Unlock tool way		Hydraulic
Tool magazine
Tool magazine capacity	Tool magazine Capacity	T	24
Federate
X/Y/Z express displacement	Ted X/Y/Z axis express displacement	mm/min	24000/24000/18000
Cutting feed rate	Cutting feed rate	mm/min	12000
Accuracy
Positioning accuracy	Pointing accuracy	mm	±0.003/300
Repeatable positioning accuracy	Repeat ability accuracy	mm	±0.002/300
Machine information
Machine tool dimensions	Machine dimension (L×W×H)	mm	265028802920
Machine weight	Machine weight	kg	4810
Power demand (power/current)	Power requirement	KVA	20

※As the company is constantly improving its products，Therefore, the company reserves the right to change the design and specifications and configuration at any time without notice，

If patronized，Please check if the specifications have changed!

VMC-850L (Mitsubishi M80B + Belt BT40 Spindle)Optional configuration of the model (charged)

serial number	Accessory name	Product model	quantity	Remarks
1	̈Optional five-shaft (turboworm)	Body FAR210 motor + drive	1cover
2	̈ Optional five-shaft (harmonic gear)	Body J1200 motor + drive	1cover
3	̈ Optional four-axis (body)	Ontology AR210，Drive + motor	1cover
4	̈ Optional four-axis (body + disc tailstock)	Ontology AR210，Drive + motor，Disc tailstock RTA210，Block L，Bridge plate	1cover
5	̈ Optional four-axle (body + top tailstock)	Ontology AR210，Drive + motor，TJ210 top tailstock，Chuck flange	1cover
6	̈ Flat nose pliers should be optional	6inch	1piece
7	̈ An optional refractometer is required	Hand-held refractometer	1piece
8	̈ Optional lock knife wrench	Dedicated to C32	1piece
9	̈ Optional locking tool holder	BT40 with clamping lock tool holder	1piece
10	̈Precision cutting head is optional	BT40-C32-105(With card slot)	1piece
11	̈ Precision spring clip is optional	C32 3/4/6/8/10/12/16	1 each
12	̈ To choose a U disk		1piece
13	̈ To choose a combination pressure plate	M16 Composite Platen	1cover
