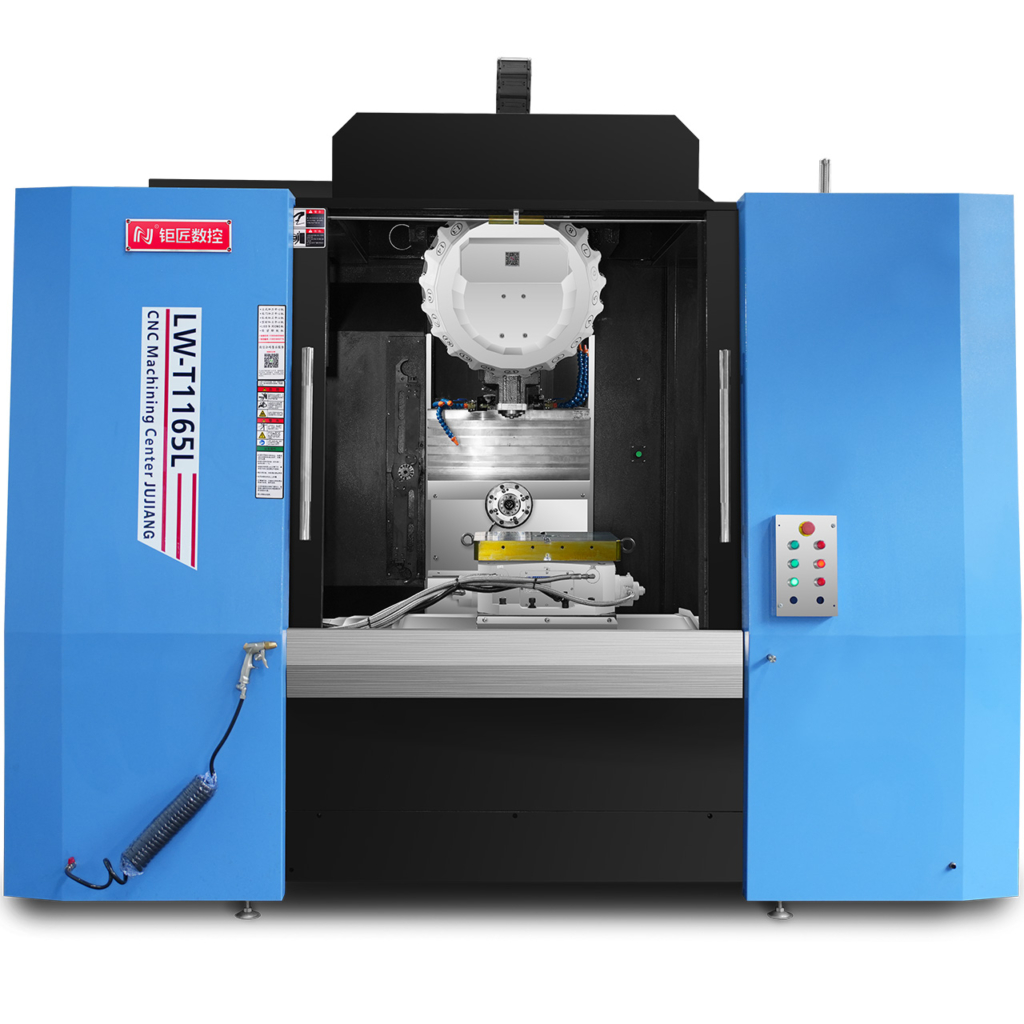

LWT1165L(发那科5包系统+直联式BT30主轴+直联式BT40主轴+夹臂式21T立式伺服刀库+刀臂式24卧式T刀库)技术参数Technical Parameters
型号 | model | 单位(unit) | |
行程Travel | |||
X轴行程(转台左右移动) | X-axis travel | mm | 1100 |
Y1轴行程(鞍座前后移动) | Y1-axis travel | mm | 700 |
Y2轴行程(卧式主轴箱上下移动) | Y2-axis travel | mm | 500 |
Z1轴行程(立式主轴箱上下) | Z1-axis travel | mm | 530 |
Z2轴行程(鞍座前后移动) | Z2-axis travel | mm | 700 |
立式主轴中心至卧式主轴端面 | Distance from vertical spindle center to horizontal spindle end face | mm | 655 |
立式主轴端面至工作台面距离 | Distance from vertical spindle end face to workbench surface | mm | 170-700 |
卧式主轴中心线至工作台面距离 | Distance from horizontal spindle centerline toworkbench surface | mm | 50-550 |
卧式主轴端面至工作台中心线距离 | Distance from the end face of the horizontal spindle to the centerline of the workbench | mm | 305-1005 |
立式主轴中心线到立柱线轨距离 | Distance from spindle center to column rail | mm | 797 |
工作台Worktable | |||
工作台尺寸 | Worktable size | mm | 500×500 |
工作台最大承重 | Worktable maximum load | kg | 300 |
T型槽 | Worktable T-slot | mm | 5-18-100 |
最小设定角度 | Minimum setting angle | Deg. | 90° |
累计分割精度 | Accumulated segmentation accuracy | Sec. | 4″ |
重复精度 | Repeatability | Sec. | ±1″ |
最大回转直径 | Maximum turning diameter | mm | 1166 |
主轴Spindle | |||
主轴转速(立式/卧式) | Spindle Speed | rpm | 15000/12000 |
主轴功率(立式/卧式) | Spindle motor power | KW | 5.5/7.5 |
主轴锥孔(立式/卧式) | Spindle taper hole | BT30-φ100/
BT40-φ140 |
|
主轴弹簧夹头(立式/卧式) | Spindle collet chuck | ER25/C32 | |
松刀方式(立式/卧式) | Unlock tool way | 机械式打刀/
气动增压油缸打刀 |
|
夹臂式刀库Tool magazine | |||
立式刀库容量 | Tool magazine Capacity | T | 21 |
卧式刀库容量 | Tool magazine Capacity | T | 24 |
进给率Federate | |||
X/Y/Z1/Z2轴快递位移 | Ted X/Y/Z1/Z2 axis express displacement | mm/min | 36000 |
切削进给率 | Cutting feed rate | mm/min | 12000 |
精度Accuracy | |||
定位精度 | Pointing accuracy | mm | ±0.003/300 |
重复定位精度 | Repeat ability accuracy | mm | ±0.002/300 |
机床信息Machine information | |||
机床外形尺寸 | Machine dimension (L×W×H) | mm | 3300*3300*3200 |
机床重量
|
Machine weight | kg | 7000 |
电力需求(功率/电流) | Power requirement | KVA | 25 |
※由于本公司不断改进产品,因此本公司保留随时更改设计及规格和配置的权利且不另行通知,
如蒙惠顾时,请确认规格是否变更!
